Design Data structures in the Data structure Editor

Who is this guide for?

Role: Data Architect, Data Steward

Goal: You want to define reusable Data structures that can be used for Data sourcesData sourceA data-related element that represents the origin of data. It defines how data is connected, accessed, and ingested into the Platform, such as an external database or sensor network., Mappings, and Pipelines.

Required Permissions: update Data structure

What you will learn

After completing this guide, you will understand how to:

• use the Data structure canvas
• import and export Data structures
• use Standard structures
• create and organize Classes
• define a Root Class
• use Enums for predefined values
• add and describe Attributes
• connect Classes using Relationships
• define Cardinalities
• understand when a Data structure Version is in use and how this affects editing

Before you start

A Data structure describes the shape of your data independently of its source or storage. It defines how information is organized and serves as the foundation for Data sourcesData sourceA data-related element that represents the origin of data. It defines how data is connected, accessed, and ingested into the Platform, such as an external database or sensor network., Mappings, and Pipelines.

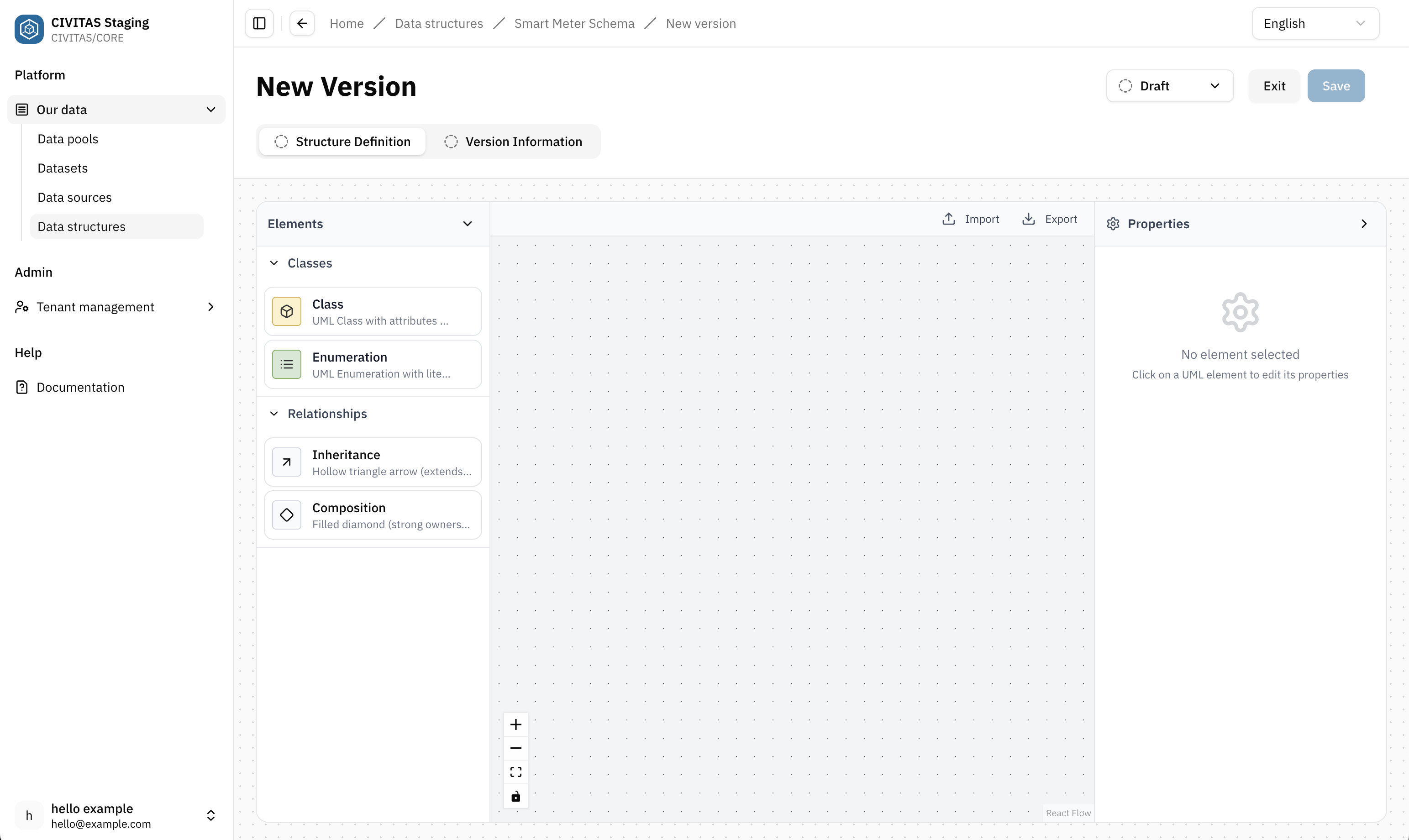

The Data structure canvas

The Data Structure canvas allows you to build Data structures visually. Elements are added by dragging them from the left sidebar onto the canvas and configured using the properties panel.

To start defining a Data structure:

1. Go to the Data structure Version
2. Open the Structure Definition

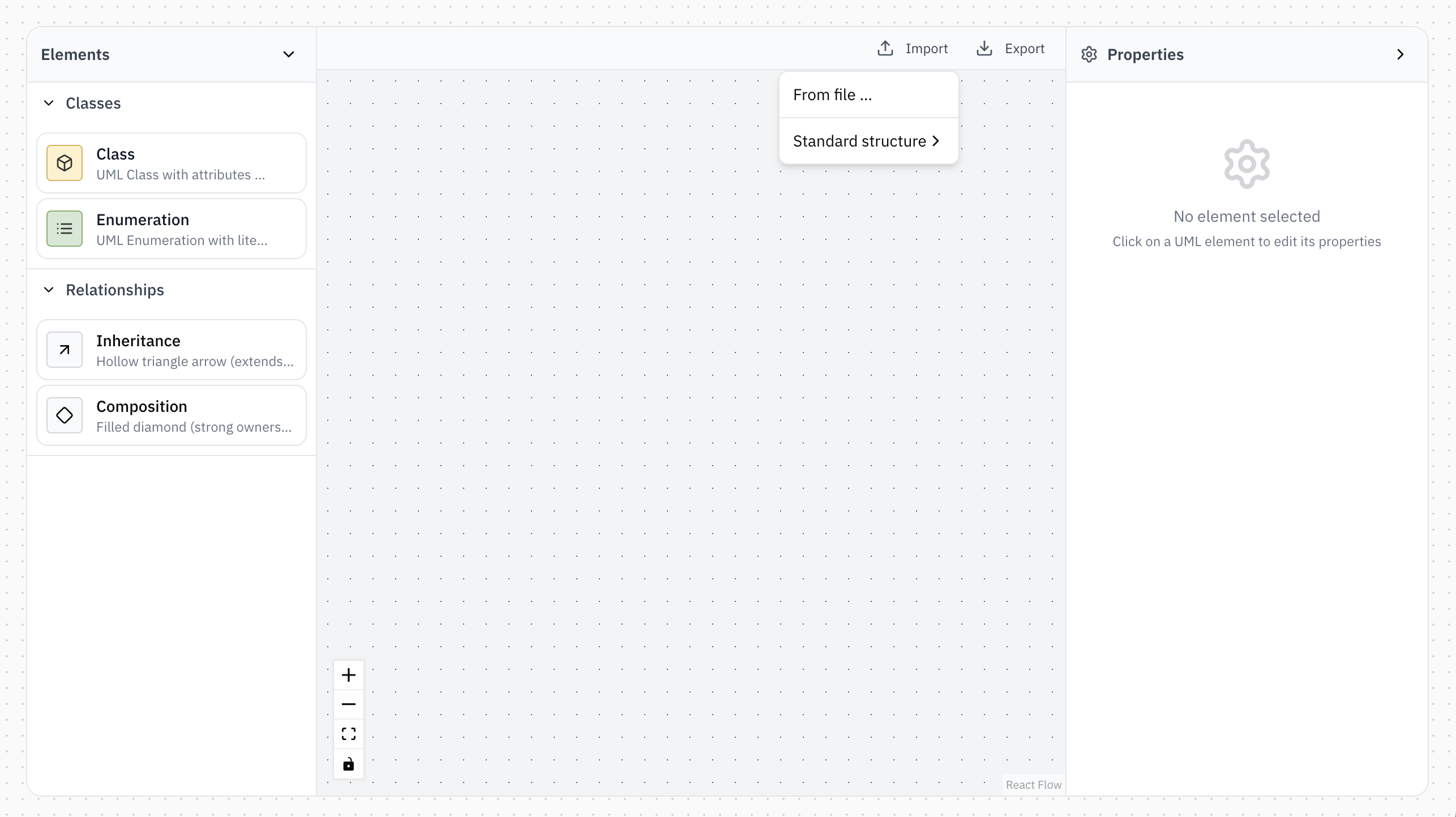

Import and export structures

Instead of defining a structure manually, you can import an existing structure or use one of the provided Standard structures.

Import from a file

Select Import → From file ... to import a Data structure from a JSON file.

During import, CIVITAS/CORE validates whether the file can be represented as a Data structure.

Existing Structure Definition is replaced

Importing a Data structure from a file replaces the complete Structure Definition currently on the canvas.

Import a Standard structure

CIVITAS/CORE provides predefined Standard structures for working with sensor data.

Select Import → Standard structure → FROST and choose one of the following:

• Things
• Observations
• ThingTree

Unlike importing from a file, Standard structures are added to the existing Structure Definition. You can therefore import multiple Standard structures into the same Data structure.

For details about the SensorThings structures and when to use each one, see → Work with sensor Data.

Export a Data structure

Select Export to export the current Structure Definition.

The export contains the current state of the Data structure model defined on the canvas. The exported file can be imported into CIVITAS/CORE again, for example to reuse a Data structure in another Platform instance.

Understand the building blocks

Naming rules

Names are validated when you create or rename building blocks.

For Classes and Enums:

• names must be unique within the Data structure
• Names must begin with a letter or _
• Names cannot contain whitespace
• _ is the only supported special character
• Names are compared after conversion to PascalCase. For example, names that result in the same PascalCase representation cannot be used for different Classes or Enums

For Attributes and Enum values:

• names must be unique within their respective Class or Enum

Classes

Classes are the main building blocks of a Data structure. Each Class represents a specific type of object and defines which information is stored about it.

A Class consists of one or more Attributes that describe its properties. For example, a Building Class might contain Attributes such as name, address, and year of construction.

Use multiple Classes when your data contains different types of objects that belong together. These Classes can be connected through Relationships to describe how they are related.

Create a Class

1. Drag a Class from the left sidebar onto the canvas
2. Enter a name
3. Configure the Class in the right properties panel
4. Add the Attributes
5. Hit Save

→ A Class can be edited, renamed, or deleted at any time while the Data structure is in the Draft status.

Root Class

Every Data structure requires one Root Class. The Root Class defines the starting point of the Data structure and determines which Class represents the top level of the resulting schema.

This is required when a Data structure contains multiple Classes. When the Data structure is used in a Mapping in a Pipeline of a DatasetDatasetA data-related element that contains processed data and makes it available for consumption. A Dataset is populated via Pipelines and carries Metadata and access permissions., CIVITAS/CORE needs to know which Class defines the top-level object that enters or leaves the Mapping.

To define the Root Class:

1. Select a Class on the canvas
2. Enable Root class in the Class Properties

Only one Class can be the Root Class. Selecting another Class as the Root Class automatically removes the setting from the previous Root Class.

Delete a Class

Select the Class on the canvas and press the Delete key.

Recommendation

Use a Class to represent a distinct object. Use Attributes to describe that object.

Enums

An Enum (Enumeration) defines a fixed list of predefined values that an Attribute can use.

Use an Enum when only a limited set of values is allowed and these values are not expected to have additional Attributes or Relationships.

Example Instead of allowing any text value for a parking space type, create an Enum with the values: Accessible, Electric Vehicle, Standard

Create an Enum

1. Drag an Enum from the left sidebar onto the canvas
2. Enter a name
3. Add the allowed values in the right properties panel
4. Hit Save

Delete an Enum

Select the Enum on the canvas and press the Delete key.

Recommendation

Use an Enum for predefined value lists. If the values need their own Attributes or Relationships, create a Class instead.

Attributes

Attributes describe the properties of a Class. Each Attribute represents a single piece of information about the object defined by the Class.

Add an Attribute

1. Select a Class on the canvas.
2. Open the Attributes section in the right properties panel.
3. Select Add Attribute
4. Configure the Attribute

For each Attribute, you can define:

• Name: A unique name for the Attribute
• Type: Choose a primitive or geometry data type
• Cardinality: Specify whether the Attribute stores a single value or multiple values
• Default Value (optional): Set a value that is used by default
• Static (optional): Mark the Attribute as static
• Primary Key (optional): Identifies the Attribute as the unique identifier of the Class

Recommendation

Use meaningful names and choose the most appropriate data type for each Attribute. Keep Attributes focused on describing the selected Class.

Relationships

Relationships connect Classes and describe how different types of objects belong together. For example, a Building can contain multiple Rooms. The relationship connects both Classes and describes how they are related.

Create a Relationship

1. Select a Relationship type from the left sidebar
2. Drag a connection from the start Class to the end Class
3. Select the connection to configure it in the right properties panel.

Alternative: Create a generic connection first and change the Relationship type later using the Relationship Type property.

Important

Every Class that belongs to a Data structure must be connected through Relationships. Unconnected Classes are not included in the hierarchical structure used throughout the Platform, for example in the Mapping Editor.

Relationship Types

Relationship Type	Description
Composition	Represents a whole–part relationship where the contained objects belong to exactly one parent and typically do not exist independently
Inheritance	Allows one Class to inherit the properties of another Class. Use this when multiple Classes share common Attributes and behavior

For each Relationship, you can define:

• Relationship Type: Defines how the connected Classes relate to each other
• Name (optional): Assign a descriptive name to the Relationship
• Multiplicity (Cardinalities): Defines how many objects can participate in the Relationship
• Roles (optional): Assign names to the connected ends of the Relationship
• Navigation (optional): Defines whether the Relationship can be navigated in one or both directions

Delete a Relationship

Select the Relationship on the canvas and press the Delete key.

Important

The direction of a Relationship is significant. Always connect the start Class and end Class according to the logical structure of your data. Relationship direction determines how the Data structure is interpreted throughout the Platform, for example in the Mapping Editor.

Cardinalities/Multiplicity

Cardinalities define how many objects can participate in a Relationship. They describe the allowed number of connected objects between two Classes.

The following Cardinalities are commonly used:

Cardinality	Meaning	Description
1	Exactly one	Exactly one object is required
0..1	Zero or one	The relationship is optional. At most one object can be related
0..*	Zero or more	Any number of objects can be related, including none
1..*	One or more	One or more objects must be related

Example: A Building can contain many Rooms, while each Room belongs to exactly one Building.

Data structure versions and usage

A Data structure Version can be used by data-related elementsData-related elementsA collective term for Datasets, Data structures, Data pools and Data sources., such as Data sourcesData sourceA data-related element that represents the origin of data. It defines how data is connected, accessed, and ingested into the Platform, such as an external database or sensor network. and DatasetsDatasetA data-related element that contains processed data and makes it available for consumption. A Dataset is populated via Pipelines and carries Metadata and access permissions.. Data structure Versions can already be used while they are in Draft. This allows the Structure Definition to be developed and adjusted iteratively while building the complete data flow.

Data sourcesData sourceA data-related element that represents the origin of data. It defines how data is connected, accessed, and ingested into the Platform, such as an external database or sensor network. use a Data structure Version to describe the structure of the data they provide. Within DatasetsDatasetA data-related element that contains processed data and makes it available for consumption. A Dataset is populated via Pipelines and carries Metadata and access permissions., Data structure Versions are used in Pipelines, for example by Data sourceData sourceA data-related element that represents the origin of data. It defines how data is connected, accessed, and ingested into the Platform, such as an external database or sensor network., Mapping and Data storage nodes.

Editing a Data structure Version that is in use

The usage of a Data structure Version can restrict changes to its Structure Definition. While a Version is in Draft, its Structure Definition can be edited.

An Available Version must be returned to Draft before its Structure Definition can be changed. If the Version is in use by an Available data-related element, returning it to Draft is blocked.

In this case, the dependencies must be resolved before the Version can be returned to Draft and its Structure Definition can be changed.

For an overview of status and editing restrictions, see → Status lifecycle and editing.

Recommendation

If an Available Data structure Version needs substantial changes, consider creating a new Version instead of returning the existing Version to Draft. This allows existing usages to remain unchanged while the Data structure is developed further.

Summary

You have learned how to:

• use the Data structure canvas
• create Classes, Enums, and Attributes
• connect Classes using Relationships
• choose appropriate Cardinalities
• select the appropriate Relationship type
